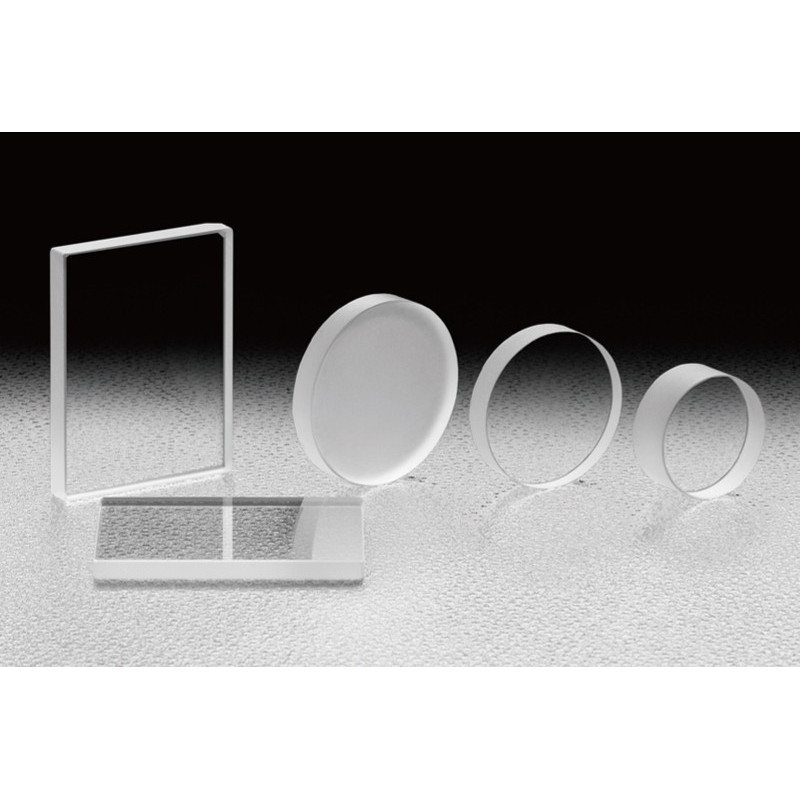

Optical Square Parallel, BK7, Uncoated
Reference number: OSE-OPB-10S02-20-2
Type: Optical Square Parallels
Need more info?
Contact our expert.
Optics & Optomechanics Team
Phone: +49 8153 405-11
Write your question
check_circle Question sent
Your question has been sent!
error Your question cannot be sent!
Description
Precision substrates polished on both sides with excellent surface quality and flatness.
- Type: Optical Square Parallels
- Material: BK7
- Clear Aperture: 90% of actual aperture, or a circle or ellipse inscribed in the rectangle of 90% Dimensions
- Parallelism [´´]: <00´02´´
- Surface Quality (Scratch-Dig): 10-5
- Type: Optical Square Parallels
- Length A [mm]: 10
- Thickness t [mm]: 2
- Material: BK7
- Surface flatness: λ/20
- Clear Aperture: 90% of actual aperture, or a circle or ellipse inscribed in the rectangle of 90% Dimensions
- Parallelism [´´]: <00´02´´
- Surface Quality (Scratch-Dig): 10-5
- Type: Optical Square Parallels
- Length A [mm]: 10
- Thickness t [mm]: 3
- Material: BK7
- Surface flatness: λ/20
- Clear Aperture: 90% of actual aperture, or a circle or ellipse inscribed in the rectangle of 90% Dimensions
- Parallelism [´´]: <00´02´´
- Surface Quality (Scratch-Dig): 10-5
- Type: Optical Square Parallels
- Length A [mm]: 10
- Thickness t [mm]: 5
- Material: BK7
- Surface flatness: λ/20
- Clear Aperture: 90% of actual aperture, or a circle or ellipse inscribed in the rectangle of 90% Dimensions
- Parallelism [´´]: <00´02´´
- Surface Quality (Scratch-Dig): 10-5
- Type: Optical Square Parallels
- Length A [mm]: 15
- Thickness t [mm]: 3
- Material: BK7
- Surface flatness: λ/20
- Clear Aperture: 90% of actual aperture, or a circle or ellipse inscribed in the rectangle of 90% Dimensions
- Parallelism [´´]: <00´02´´
- Surface Quality (Scratch-Dig): 10-5
- Type: Optical Square Parallels
- Length A [mm]: 15
- Thickness t [mm]: 5
- Material: BK7
- Surface flatness: λ/20
- Clear Aperture: 90% of actual aperture, or a circle or ellipse inscribed in the rectangle of 90% Dimensions
- Parallelism [´´]: <00´02´´
- Surface Quality (Scratch-Dig): 10-5
- Type: Optical Square Parallels
- Length A [mm]: 20
- Thickness t [mm]: 3
- Material: BK7
- Surface flatness: λ/20
- Clear Aperture: 90% of actual aperture, or a circle or ellipse inscribed in the rectangle of 90% Dimensions
- Parallelism [´´]: <00´02´´
- Surface Quality (Scratch-Dig): 10-5
- Type: Optical Square Parallels
- Length A [mm]: 20
- Thickness t [mm]: 5
- Material: BK7
- Surface flatness: λ/20
- Clear Aperture: 90% of actual aperture, or a circle or ellipse inscribed in the rectangle of 90% Dimensions
- Parallelism [´´]: <00´02´´
- Surface Quality (Scratch-Dig): 10-5
- Type: Optical Square Parallels
- Length A [mm]: 25
- Thickness t [mm]: 5
- Material: BK7
- Surface flatness: λ/20
- Clear Aperture: 90% of actual aperture, or a circle or ellipse inscribed in the rectangle of 90% Dimensions
- Parallelism [´´]: <00´02´´
- Surface Quality (Scratch-Dig): 10-5
- Type: Optical Square Parallels
- Length A [mm]: 30
- Thickness t [mm]: 5
- Material: BK7
- Surface flatness: λ/20
- Clear Aperture: 90% of actual aperture, or a circle or ellipse inscribed in the rectangle of 90% Dimensions
- Parallelism [´´]: <00´02´´
- Surface Quality (Scratch-Dig): 10-5
- Type: Optical Square Parallels
- Length A [mm]: 40
- Thickness t [mm]: 6
- Material: BK7
- Surface flatness: λ/20
- Clear Aperture: 90% of actual aperture, or a circle or ellipse inscribed in the rectangle of 90% Dimensions
- Parallelism [´´]: <00´02´´
- Surface Quality (Scratch-Dig): 10-5
- Type: Optical Square Parallels
- Length A [mm]: 50
- Thickness t [mm]: 8
- Material: BK7
- Surface flatness: λ/20
- Clear Aperture: 90% of actual aperture, or a circle or ellipse inscribed in the rectangle of 90% Dimensions
- Parallelism [´´]: <00´02´´
- Surface Quality (Scratch-Dig): 10-5
- Type: Optical Square Parallels
- Length A [mm]: 10
- Thickness t [mm]: 1
- Material: BK7
- Surface flatness: λ/10
- Clear Aperture: 90% of actual aperture, or a circle or ellipse inscribed in the rectangle of 90% Dimensions
- Parallelism [´´]: <00´05´´
- Surface Quality (Scratch-Dig): 10-5
- Type: Optical Square Parallels
- Length A [mm]: 10
- Thickness t [mm]: 2
- Material: BK7
- Surface flatness: λ/10
- Clear Aperture: 90% of actual aperture, or a circle or ellipse inscribed in the rectangle of 90% Dimensions
- Parallelism [´´]: <00´05´´
- Surface Quality (Scratch-Dig): 10-5
- Type: Optical Square Parallels
- Length A [mm]: 10
- Thickness t [mm]: 3
- Material: BK7
- Surface flatness: λ/10
- Clear Aperture: 90% of actual aperture, or a circle or ellipse inscribed in the rectangle of 90% Dimensions
- Parallelism [´´]: <00´05´´
- Surface Quality (Scratch-Dig): 10-5
- Type: Optical Square Parallels
- Length A [mm]: 10
- Thickness t [mm]: 5
- Material: BK7
- Surface flatness: λ/10
- Clear Aperture: 90% of actual aperture, or a circle or ellipse inscribed in the rectangle of 90% Dimensions
- Parallelism [´´]: <00´05´´
- Surface Quality (Scratch-Dig): 10-5
- Type: Optical Square Parallels
- Length A [mm]: 15
- Thickness t [mm]: 2
- Material: BK7
- Surface flatness: λ/10
- Clear Aperture: 90% of actual aperture, or a circle or ellipse inscribed in the rectangle of 90% Dimensions
- Parallelism [´´]: <00´05´´
- Surface Quality (Scratch-Dig): 10-5
- Type: Optical Square Parallels
- Length A [mm]: 15
- Thickness t [mm]: 3
- Material: BK7
- Surface flatness: λ/10
- Clear Aperture: 90% of actual aperture, or a circle or ellipse inscribed in the rectangle of 90% Dimensions
- Parallelism [´´]: <00´05´´
- Surface Quality (Scratch-Dig): 10-5
- Type: Optical Square Parallels
- Length A [mm]: 15
- Thickness t [mm]: 5
- Material: BK7
- Surface flatness: λ/10
- Clear Aperture: 90% of actual aperture, or a circle or ellipse inscribed in the rectangle of 90% Dimensions
- Parallelism [´´]: <00´05´´
- Surface Quality (Scratch-Dig): 10-5
- Type: Optical Square Parallels
- Length A [mm]: 20
- Thickness t [mm]: 2
- Material: BK7
- Surface flatness: λ/10
- Clear Aperture: 90% of actual aperture, or a circle or ellipse inscribed in the rectangle of 90% Dimensions
- Parallelism [´´]: <00´05´´
- Surface Quality (Scratch-Dig): 10-5
- Type: Optical Square Parallels
- Length A [mm]: 20
- Thickness t [mm]: 3
- Material: BK7
- Surface flatness: λ/10
- Clear Aperture: 90% of actual aperture, or a circle or ellipse inscribed in the rectangle of 90% Dimensions
- Parallelism [´´]: <00´05´´
- Surface Quality (Scratch-Dig): 10-5
- Type: Optical Square Parallels
- Length A [mm]: 20
- Thickness t [mm]: 5
- Material: BK7
- Surface flatness: λ/10
- Clear Aperture: 90% of actual aperture, or a circle or ellipse inscribed in the rectangle of 90% Dimensions
- Parallelism [´´]: <00´05´´
- Surface Quality (Scratch-Dig): 10-5
- Type: Optical Square Parallels
- Length A [mm]: 25
- Thickness t [mm]: 3
- Material: BK7
- Surface flatness: λ/10
- Clear Aperture: 90% of actual aperture, or a circle or ellipse inscribed in the rectangle of 90% Dimensions
- Parallelism [´´]: <00´05´´
- Surface Quality (Scratch-Dig): 10-5
- Type: Optical Square Parallels
- Length A [mm]: 25
- Thickness t [mm]: 5
- Material: BK7
- Surface flatness: λ/10
- Clear Aperture: 90% of actual aperture, or a circle or ellipse inscribed in the rectangle of 90% Dimensions
- Parallelism [´´]: <00´05´´
- Surface Quality (Scratch-Dig): 10-5
- Type: Optical Square Parallels
- Length A [mm]: 30
- Thickness t [mm]: 3
- Material: BK7
- Surface flatness: λ/10
- Clear Aperture: 90% of actual aperture, or a circle or ellipse inscribed in the rectangle of 90% Dimensions
- Parallelism [´´]: <00´05´´
- Surface Quality (Scratch-Dig): 10-5
- Type: Optical Square Parallels
- Length A [mm]: 30
- Thickness t [mm]: 5
- Material: BK7
- Surface flatness: λ/10
- Clear Aperture: 90% of actual aperture, or a circle or ellipse inscribed in the rectangle of 90% Dimensions
- Parallelism [´´]: <00´05´´
- Surface Quality (Scratch-Dig): 10-5
- Type: Optical Square Parallels
- Length A [mm]: 40
- Thickness t [mm]: 4
- Material: BK7
- Surface flatness: λ/10
- Clear Aperture: 90% of actual aperture, or a circle or ellipse inscribed in the rectangle of 90% Dimensions
- Parallelism [´´]: <00´05´´
- Surface Quality (Scratch-Dig): 10-5
- Type: Optical Square Parallels
- Length A [mm]: 40
- Thickness t [mm]: 6
- Material: BK7
- Surface flatness: λ/10
- Clear Aperture: 90% of actual aperture, or a circle or ellipse inscribed in the rectangle of 90% Dimensions
- Parallelism [´´]: <00´05´´
- Surface Quality (Scratch-Dig): 10-5
- Type: Optical Square Parallels
- Length A [mm]: 50
- Thickness t [mm]: 5
- Material: BK7
- Surface flatness: λ/10
- Clear Aperture: 90% of actual aperture, or a circle or ellipse inscribed in the rectangle of 90% Dimensions
- Parallelism [´´]: <00´05´´
- Surface Quality (Scratch-Dig): 10-5
- Type: Optical Square Parallels
- Length A [mm]: 50
- Thickness t [mm]: 8
- Material: BK7
- Surface flatness: λ/10
- Clear Aperture: 90% of actual aperture, or a circle or ellipse inscribed in the rectangle of 90% Dimensions
- Parallelism [´´]: <00´05´´
- Surface Quality (Scratch-Dig): 10-5
- Type: Optical Square Parallels
- Length A [mm]: 10
- Thickness t [mm]: 1
- Material: BK7
- Surface flatness: λ/4
- Clear Aperture: 90% of actual aperture, or a circle or ellipse inscribed in the rectangle of 90% Dimensions
- Parallelism [´´]: <00´05´´
- Surface Quality (Scratch-Dig): 10-5
- Type: Optical Square Parallels
- Length A [mm]: 10
- Thickness t [mm]: 2
- Material: BK7
- Surface flatness: λ/4
- Clear Aperture: 90% of actual aperture, or a circle or ellipse inscribed in the rectangle of 90% Dimensions
- Parallelism [´´]: <00´05´´
- Surface Quality (Scratch-Dig): 10-5
- Type: Optical Square Parallels
- Length A [mm]: 10
- Thickness t [mm]: 3
- Material: BK7
- Surface flatness: λ/4
- Clear Aperture: 90% of actual aperture, or a circle or ellipse inscribed in the rectangle of 90% Dimensions
- Parallelism [´´]: <00´05´´
- Surface Quality (Scratch-Dig): 10-5
- Type: Optical Square Parallels
- Length A [mm]: 10
- Thickness t [mm]: 5
- Material: BK7
- Surface flatness: λ/4
- Clear Aperture: 90% of actual aperture, or a circle or ellipse inscribed in the rectangle of 90% Dimensions
- Parallelism [´´]: <00´05´´
- Surface Quality (Scratch-Dig): 10-5
- Type: Optical Square Parallels
- Length A [mm]: 15
- Thickness t [mm]: 2
- Material: BK7
- Surface flatness: λ/4
- Clear Aperture: 90% of actual aperture, or a circle or ellipse inscribed in the rectangle of 90% Dimensions
- Parallelism [´´]: <00´05´´
- Surface Quality (Scratch-Dig): 10-5
- Type: Optical Square Parallels
- Length A [mm]: 15
- Thickness t [mm]: 3
- Material: BK7
- Surface flatness: λ/4
- Clear Aperture: 90% of actual aperture, or a circle or ellipse inscribed in the rectangle of 90% Dimensions
- Parallelism [´´]: <00´05´´
- Surface Quality (Scratch-Dig): 10-5
- Type: Optical Square Parallels
- Length A [mm]: 15
- Thickness t [mm]: 5
- Material: BK7
- Surface flatness: λ/4
- Clear Aperture: 90% of actual aperture, or a circle or ellipse inscribed in the rectangle of 90% Dimensions
- Parallelism [´´]: <00´05´´
- Surface Quality (Scratch-Dig): 10-5
- Type: Optical Square Parallels
- Length A [mm]: 20
- Thickness t [mm]: 2
- Material: BK7
- Surface flatness: λ/4
- Clear Aperture: 90% of actual aperture, or a circle or ellipse inscribed in the rectangle of 90% Dimensions
- Parallelism [´´]: <00´05´´
- Surface Quality (Scratch-Dig): 10-5
- Type: Optical Square Parallels
- Length A [mm]: 20
- Thickness t [mm]: 3
- Material: BK7
- Surface flatness: λ/4
- Clear Aperture: 90% of actual aperture, or a circle or ellipse inscribed in the rectangle of 90% Dimensions
- Parallelism [´´]: <00´05´´
- Surface Quality (Scratch-Dig): 10-5
- Type: Optical Square Parallels
- Length A [mm]: 20
- Thickness t [mm]: 5
- Material: BK7
- Surface flatness: λ/4
- Clear Aperture: 90% of actual aperture, or a circle or ellipse inscribed in the rectangle of 90% Dimensions
- Parallelism [´´]: <00´05´´
- Surface Quality (Scratch-Dig): 10-5
- Type: Optical Square Parallels
- Length A [mm]: 25
- Thickness t [mm]: 3
- Material: BK7
- Surface flatness: λ/4
- Clear Aperture: 90% of actual aperture, or a circle or ellipse inscribed in the rectangle of 90% Dimensions
- Parallelism [´´]: <00´05´´
- Surface Quality (Scratch-Dig): 10-5
- Type: Optical Square Parallels
- Length A [mm]: 25
- Thickness t [mm]: 5
- Material: BK7
- Surface flatness: λ/4
- Clear Aperture: 90% of actual aperture, or a circle or ellipse inscribed in the rectangle of 90% Dimensions
- Parallelism [´´]: <00´05´´
- Surface Quality (Scratch-Dig): 10-5
- Type: Optical Square Parallels
- Length A [mm]: 30
- Thickness t [mm]: 3
- Material: BK7
- Surface flatness: λ/4
- Clear Aperture: 90% of actual aperture, or a circle or ellipse inscribed in the rectangle of 90% Dimensions
- Parallelism [´´]: <00´05´´
- Surface Quality (Scratch-Dig): 10-5
- Type: Optical Square Parallels
- Length A [mm]: 30
- Thickness t [mm]: 5
- Material: BK7
- Surface flatness: λ/4
- Clear Aperture: 90% of actual aperture, or a circle or ellipse inscribed in the rectangle of 90% Dimensions
- Parallelism [´´]: <00´05´´
- Surface Quality (Scratch-Dig): 10-5
- Type: Optical Square Parallels
- Length A [mm]: 40
- Thickness t [mm]: 4
- Material: BK7
- Surface flatness: λ/4
- Clear Aperture: 90% of actual aperture, or a circle or ellipse inscribed in the rectangle of 90% Dimensions
- Parallelism [´´]: <00´05´´
- Surface Quality (Scratch-Dig): 10-5
- Type: Optical Square Parallels
- Length A [mm]: 40
- Thickness t [mm]: 6
- Material: BK7
- Surface flatness: λ/4
- Clear Aperture: 90% of actual aperture, or a circle or ellipse inscribed in the rectangle of 90% Dimensions
- Parallelism [´´]: <00´05´´
- Surface Quality (Scratch-Dig): 10-5
- Type: Optical Square Parallels
- Length A [mm]: 50
- Thickness t [mm]: 5
- Material: BK7
- Surface flatness: λ/4
- Clear Aperture: 90% of actual aperture, or a circle or ellipse inscribed in the rectangle of 90% Dimensions
- Parallelism [´´]: <00´05´´
- Surface Quality (Scratch-Dig): 10-5
- Type: Optical Square Parallels
- Length A [mm]: 50
- Thickness t [mm]: 8
- Material: BK7
- Surface flatness: λ/4
- Clear Aperture: 90% of actual aperture, or a circle or ellipse inscribed in the rectangle of 90% Dimensions
- Parallelism [´´]: <00´05´´
- Surface Quality (Scratch-Dig): 10-5
- Type: Optical Square Parallels
- Length A [mm]: 10
- Thickness t [mm]: 1
- Material: BK7
- Surface flatness: λ
- Clear Aperture: 90% of actual aperture, or a circle or ellipse inscribed in the rectangle of 90% Dimensions
- Parallelism [´´]: <00´05´´
- Surface Quality (Scratch-Dig): 10-5
- Type: Optical Square Parallels
- Length A [mm]: 10
- Thickness t [mm]: 2
- Material: BK7
- Surface flatness: λ
- Clear Aperture: 90% of actual aperture, or a circle or ellipse inscribed in the rectangle of 90% Dimensions
- Parallelism [´´]: <00´05´´
- Surface Quality (Scratch-Dig): 10-5
- Type: Optical Square Parallels
- Length A [mm]: 10
- Thickness t [mm]: 3
- Material: BK7
- Surface flatness: λ
- Clear Aperture: 90% of actual aperture, or a circle or ellipse inscribed in the rectangle of 90% Dimensions
- Parallelism [´´]: <00´05´´
- Surface Quality (Scratch-Dig): 10-5
- Type: Optical Square Parallels
- Length A [mm]: 10
- Thickness t [mm]: 5
- Material: BK7
- Surface flatness: λ
- Clear Aperture: 90% of actual aperture, or a circle or ellipse inscribed in the rectangle of 90% Dimensions
- Parallelism [´´]: <00´05´´
- Surface Quality (Scratch-Dig): 10-5
- Type: Optical Square Parallels
- Length A [mm]: 15
- Thickness t [mm]: 1
- Material: BK7
- Surface flatness: λ
- Clear Aperture: 90% of actual aperture, or a circle or ellipse inscribed in the rectangle of 90% Dimensions
- Parallelism [´´]: <00´05´´
- Surface Quality (Scratch-Dig): 10-5
- Type: Optical Square Parallels
- Length A [mm]: 15
- Thickness t [mm]: 2
- Material: BK7
- Surface flatness: λ
- Clear Aperture: 90% of actual aperture, or a circle or ellipse inscribed in the rectangle of 90% Dimensions
- Parallelism [´´]: <00´05´´
- Surface Quality (Scratch-Dig): 10-5
- Type: Optical Square Parallels
- Length A [mm]: 15
- Thickness t [mm]: 3
- Material: BK7
- Surface flatness: λ
- Clear Aperture: 90% of actual aperture, or a circle or ellipse inscribed in the rectangle of 90% Dimensions
- Parallelism [´´]: <00´05´´
- Surface Quality (Scratch-Dig): 10-5
- Type: Optical Square Parallels
- Length A [mm]: 15
- Thickness t [mm]: 5
- Material: BK7
- Surface flatness: λ
- Clear Aperture: 90% of actual aperture, or a circle or ellipse inscribed in the rectangle of 90% Dimensions
- Parallelism [´´]: <00´05´´
- Surface Quality (Scratch-Dig): 10-5
- Type: Optical Square Parallels
- Length A [mm]: 20
- Thickness t [mm]: 1
- Material: BK7
- Surface flatness: λ
- Clear Aperture: 90% of actual aperture, or a circle or ellipse inscribed in the rectangle of 90% Dimensions
- Parallelism [´´]: <00´05´´
- Surface Quality (Scratch-Dig): 10-5
- Type: Optical Square Parallels
- Length A [mm]: 20
- Thickness t [mm]: 2
- Material: BK7
- Surface flatness: λ
- Clear Aperture: 90% of actual aperture, or a circle or ellipse inscribed in the rectangle of 90% Dimensions
- Parallelism [´´]: <00´05´´
- Surface Quality (Scratch-Dig): 10-5
- Type: Optical Square Parallels
- Length A [mm]: 20
- Thickness t [mm]: 3
- Material: BK7
- Surface flatness: λ
- Clear Aperture: 90% of actual aperture, or a circle or ellipse inscribed in the rectangle of 90% Dimensions
- Parallelism [´´]: <00´05´´
- Surface Quality (Scratch-Dig): 10-5
- Type: Optical Square Parallels
- Length A [mm]: 20
- Thickness t [mm]: 5
- Material: BK7
- Surface flatness: λ
- Clear Aperture: 90% of actual aperture, or a circle or ellipse inscribed in the rectangle of 90% Dimensions
- Parallelism [´´]: <00´05´´
- Surface Quality (Scratch-Dig): 10-5
- Type: Optical Square Parallels
- Length A [mm]: 25
- Thickness t [mm]: 1
- Material: BK7
- Surface flatness: λ
- Clear Aperture: 90% of actual aperture, or a circle or ellipse inscribed in the rectangle of 90% Dimensions
- Parallelism [´´]: <00´05´´
- Surface Quality (Scratch-Dig): 10-5
- Type: Optical Square Parallels
- Length A [mm]: 25
- Thickness t [mm]: 2
- Material: BK7
- Surface flatness: λ
- Clear Aperture: 90% of actual aperture, or a circle or ellipse inscribed in the rectangle of 90% Dimensions
- Parallelism [´´]: <00´05´´
- Surface Quality (Scratch-Dig): 10-5
- Type: Optical Square Parallels
- Length A [mm]: 25
- Thickness t [mm]: 3
- Material: BK7
- Surface flatness: λ
- Clear Aperture: 90% of actual aperture, or a circle or ellipse inscribed in the rectangle of 90% Dimensions
- Parallelism [´´]: <00´05´´
- Surface Quality (Scratch-Dig): 10-5
- Type: Optical Square Parallels
- Length A [mm]: 25
- Thickness t [mm]: 5
- Material: BK7
- Surface flatness: λ
- Clear Aperture: 90% of actual aperture, or a circle or ellipse inscribed in the rectangle of 90% Dimensions
- Parallelism [´´]: <00´05´´
- Surface Quality (Scratch-Dig): 10-5
- Type: Optical Square Parallels
- Length A [mm]: 30
- Thickness t [mm]: 1
- Material: BK7
- Surface flatness: λ
- Clear Aperture: 90% of actual aperture, or a circle or ellipse inscribed in the rectangle of 90% Dimensions
- Parallelism [´´]: <00´05´´
- Surface Quality (Scratch-Dig): 10-5
- Type: Optical Square Parallels
- Length A [mm]: 30
- Thickness t [mm]: 2
- Material: BK7
- Surface flatness: λ
- Clear Aperture: 90% of actual aperture, or a circle or ellipse inscribed in the rectangle of 90% Dimensions
- Parallelism [´´]: <00´05´´
- Surface Quality (Scratch-Dig): 10-5
- Type: Optical Square Parallels
- Length A [mm]: 30
- Thickness t [mm]: 3
- Material: BK7
- Surface flatness: λ
- Clear Aperture: 90% of actual aperture, or a circle or ellipse inscribed in the rectangle of 90% Dimensions
- Parallelism [´´]: <00´05´´
- Surface Quality (Scratch-Dig): 10-5
- Type: Optical Square Parallels
- Length A [mm]: 30
- Thickness t [mm]: 5
- Material: BK7
- Surface flatness: λ
- Clear Aperture: 90% of actual aperture, or a circle or ellipse inscribed in the rectangle of 90% Dimensions
- Parallelism [´´]: <00´05´´
- Surface Quality (Scratch-Dig): 10-5
- Type: Optical Square Parallels
- Length A [mm]: 40
- Thickness t [mm]: 2
- Material: BK7
- Surface flatness: λ
- Clear Aperture: 90% of actual aperture, or a circle or ellipse inscribed in the rectangle of 90% Dimensions
- Parallelism [´´]: <00´05´´
- Surface Quality (Scratch-Dig): 10-5
- Type: Optical Square Parallels
- Length A [mm]: 40
- Thickness t [mm]: 3
- Material: BK7
- Surface flatness: λ
- Clear Aperture: 90% of actual aperture, or a circle or ellipse inscribed in the rectangle of 90% Dimensions
- Parallelism [´´]: <00´05´´
- Surface Quality (Scratch-Dig): 10-5
- Type: Optical Square Parallels
- Length A [mm]: 40
- Thickness t [mm]: 4
- Material: BK7
- Surface flatness: λ
- Clear Aperture: 90% of actual aperture, or a circle or ellipse inscribed in the rectangle of 90% Dimensions
- Parallelism [´´]: <00´05´´
- Surface Quality (Scratch-Dig): 10-5
- Type: Optical Square Parallels
- Length A [mm]: 40
- Thickness t [mm]: 6
- Material: BK7
- Surface flatness: λ
- Clear Aperture: 90% of actual aperture, or a circle or ellipse inscribed in the rectangle of 90% Dimensions
- Parallelism [´´]: <00´05´´
- Surface Quality (Scratch-Dig): 10-5
- Type: Optical Square Parallels
- Length A [mm]: 50
- Thickness t [mm]: 2
- Material: BK7
- Surface flatness: λ
- Clear Aperture: 90% of actual aperture, or a circle or ellipse inscribed in the rectangle of 90% Dimensions
- Parallelism [´´]: <00´05´´
- Surface Quality (Scratch-Dig): 10-5
- Type: Optical Square Parallels
- Length A [mm]: 50
- Thickness t [mm]: 3
- Material: BK7
- Surface flatness: λ
- Clear Aperture: 90% of actual aperture, or a circle or ellipse inscribed in the rectangle of 90% Dimensions
- Parallelism [´´]: <00´05´´
- Surface Quality (Scratch-Dig): 10-5
- Type: Optical Square Parallels
- Length A [mm]: 50
- Thickness t [mm]: 5
- Material: BK7
- Surface flatness: λ
- Clear Aperture: 90% of actual aperture, or a circle or ellipse inscribed in the rectangle of 90% Dimensions
- Parallelism [´´]: <00´05´´
- Surface Quality (Scratch-Dig): 10-5
- Type: Optical Square Parallels
- Length A [mm]: 50
- Thickness t [mm]: 8
- Material: BK7
- Surface flatness: λ
- Clear Aperture: 90% of actual aperture, or a circle or ellipse inscribed in the rectangle of 90% Dimensions
- Parallelism [´´]: <00´05´´
- Surface Quality (Scratch-Dig): 10-5
- Type: Optical Square Parallels
- Length A [mm]: 10
- Thickness t [mm]: 1
- Material: BK7
- Surface flatness: 4λ
- Clear Aperture: 90% of actual aperture, or a circle or ellipse inscribed in the rectangle of 90% Dimensions
- Parallelism [´´]: <03´00´´
- Surface Quality (Scratch-Dig): 10-5
- Type: Optical Square Parallels
- Length A [mm]: 10
- Thickness t [mm]: 2
- Material: BK7
- Surface flatness: 4λ
- Clear Aperture: 90% of actual aperture, or a circle or ellipse inscribed in the rectangle of 90% Dimensions
- Parallelism [´´]: <03´00´´
- Surface Quality (Scratch-Dig): 10-5
- Type: Optical Square Parallels
- Length A [mm]: 10
- Thickness t [mm]: 3
- Material: BK7
- Surface flatness: 4λ
- Clear Aperture: 90% of actual aperture, or a circle or ellipse inscribed in the rectangle of 90% Dimensions
- Parallelism [´´]: <03´00´´
- Surface Quality (Scratch-Dig): 10-5
- Type: Optical Square Parallels
- Length A [mm]: 10
- Thickness t [mm]: 5
- Material: BK7
- Surface flatness: 4λ
- Clear Aperture: 90% of actual aperture, or a circle or ellipse inscribed in the rectangle of 90% Dimensions
- Parallelism [´´]: <03´00´´
- Surface Quality (Scratch-Dig): 10-5
- Type: Optical Square Parallels
- Length A [mm]: 15
- Thickness t [mm]: 1
- Material: BK7
- Surface flatness: 4λ
- Clear Aperture: 90% of actual aperture, or a circle or ellipse inscribed in the rectangle of 90% Dimensions
- Parallelism [´´]: <03´00´´
- Surface Quality (Scratch-Dig): 10-5
- Type: Optical Square Parallels
- Length A [mm]: 15
- Thickness t [mm]: 2
- Material: BK7
- Surface flatness: 4λ
- Clear Aperture: 90% of actual aperture, or a circle or ellipse inscribed in the rectangle of 90% Dimensions
- Parallelism [´´]: <03´00´´
- Surface Quality (Scratch-Dig): 10-5
- Type: Optical Square Parallels
- Length A [mm]: 15
- Thickness t [mm]: 3
- Material: BK7
- Surface flatness: 4λ
- Clear Aperture: 90% of actual aperture, or a circle or ellipse inscribed in the rectangle of 90% Dimensions
- Parallelism [´´]: <03´00´´
- Surface Quality (Scratch-Dig): 10-5
- Type: Optical Square Parallels
- Length A [mm]: 15
- Thickness t [mm]: 5
- Material: BK7
- Surface flatness: 4λ
- Clear Aperture: 90% of actual aperture, or a circle or ellipse inscribed in the rectangle of 90% Dimensions
- Parallelism [´´]: <03´00´´
- Surface Quality (Scratch-Dig): 10-5
- Type: Optical Square Parallels
- Length A [mm]: 20
- Thickness t [mm]: 1
- Material: BK7
- Surface flatness: 4λ
- Clear Aperture: 90% of actual aperture, or a circle or ellipse inscribed in the rectangle of 90% Dimensions
- Parallelism [´´]: <03´00´´
- Surface Quality (Scratch-Dig): 10-5
- Type: Optical Square Parallels
- Length A [mm]: 20
- Thickness t [mm]: 2
- Material: BK7
- Surface flatness: 4λ
- Clear Aperture: 90% of actual aperture, or a circle or ellipse inscribed in the rectangle of 90% Dimensions
- Parallelism [´´]: <03´00´´
- Surface Quality (Scratch-Dig): 10-5
- Type: Optical Square Parallels
- Length A [mm]: 20
- Thickness t [mm]: 3
- Material: BK7
- Surface flatness: 4λ
- Clear Aperture: 90% of actual aperture, or a circle or ellipse inscribed in the rectangle of 90% Dimensions
- Parallelism [´´]: <03´00´´
- Surface Quality (Scratch-Dig): 10-5
- Type: Optical Square Parallels
- Length A [mm]: 20
- Thickness t [mm]: 5
- Material: BK7
- Surface flatness: 4λ
- Clear Aperture: 90% of actual aperture, or a circle or ellipse inscribed in the rectangle of 90% Dimensions
- Parallelism [´´]: <03´00´´
- Surface Quality (Scratch-Dig): 10-5
- Type: Optical Square Parallels
- Length A [mm]: 25
- Thickness t [mm]: 1
- Material: BK7
- Surface flatness: 4λ
- Clear Aperture: 90% of actual aperture, or a circle or ellipse inscribed in the rectangle of 90% Dimensions
- Parallelism [´´]: <03´00´´
- Surface Quality (Scratch-Dig): 10-5
- Type: Optical Square Parallels
- Length A [mm]: 25
- Thickness t [mm]: 2
- Material: BK7
- Surface flatness: 4λ
- Clear Aperture: 90% of actual aperture, or a circle or ellipse inscribed in the rectangle of 90% Dimensions
- Parallelism [´´]: <03´00´´
- Surface Quality (Scratch-Dig): 10-5
- Type: Optical Square Parallels
- Length A [mm]: 25
- Thickness t [mm]: 3
- Material: BK7
- Surface flatness: 4λ
- Clear Aperture: 90% of actual aperture, or a circle or ellipse inscribed in the rectangle of 90% Dimensions
- Parallelism [´´]: <03´00´´
- Surface Quality (Scratch-Dig): 10-5
- Type: Optical Square Parallels
- Length A [mm]: 25
- Thickness t [mm]: 5
- Material: BK7
- Surface flatness: 4λ
- Clear Aperture: 90% of actual aperture, or a circle or ellipse inscribed in the rectangle of 90% Dimensions
- Parallelism [´´]: <03´00´´
- Surface Quality (Scratch-Dig): 10-5
- Type: Optical Square Parallels
- Length A [mm]: 30
- Thickness t [mm]: 1
- Material: BK7
- Surface flatness: 4λ
- Clear Aperture: 90% of actual aperture, or a circle or ellipse inscribed in the rectangle of 90% Dimensions
- Parallelism [´´]: <03´00´´
- Surface Quality (Scratch-Dig): 10-5
- Type: Optical Square Parallels
- Length A [mm]: 30
- Thickness t [mm]: 2
- Material: BK7
- Surface flatness: 4λ
- Clear Aperture: 90% of actual aperture, or a circle or ellipse inscribed in the rectangle of 90% Dimensions
- Parallelism [´´]: <03´00´´
- Surface Quality (Scratch-Dig): 10-5
- Type: Optical Square Parallels
- Length A [mm]: 30
- Thickness t [mm]: 3
- Material: BK7
- Surface flatness: 4λ
- Clear Aperture: 90% of actual aperture, or a circle or ellipse inscribed in the rectangle of 90% Dimensions
- Parallelism [´´]: <03´00´´
- Surface Quality (Scratch-Dig): 10-5
- Type: Optical Square Parallels
- Length A [mm]: 30
- Thickness t [mm]: 5
- Material: BK7
- Surface flatness: 4λ
- Clear Aperture: 90% of actual aperture, or a circle or ellipse inscribed in the rectangle of 90% Dimensions
- Parallelism [´´]: <03´00´´
- Surface Quality (Scratch-Dig): 10-5
- Type: Optical Square Parallels
- Length A [mm]: 40
- Thickness t [mm]: 2
- Material: BK7
- Surface flatness: 4λ
- Clear Aperture: 90% of actual aperture, or a circle or ellipse inscribed in the rectangle of 90% Dimensions
- Parallelism [´´]: <03´00´´
- Surface Quality (Scratch-Dig): 10-5
- Type: Optical Square Parallels
- Length A [mm]: 40
- Thickness t [mm]: 3
- Material: BK7
- Surface flatness: 4λ
- Clear Aperture: 90% of actual aperture, or a circle or ellipse inscribed in the rectangle of 90% Dimensions
- Parallelism [´´]: <03´00´´
- Surface Quality (Scratch-Dig): 10-5
- Type: Optical Square Parallels
- Length A [mm]: 40
- Thickness t [mm]: 4
- Material: BK7
- Surface flatness: 4λ
- Clear Aperture: 90% of actual aperture, or a circle or ellipse inscribed in the rectangle of 90% Dimensions
- Parallelism [´´]: <03´00´´
- Surface Quality (Scratch-Dig): 10-5
- Type: Optical Square Parallels
- Length A [mm]: 40
- Thickness t [mm]: 6
- Material: BK7
- Surface flatness: 4λ
- Clear Aperture: 90% of actual aperture, or a circle or ellipse inscribed in the rectangle of 90% Dimensions
- Parallelism [´´]: <03´00´´
- Surface Quality (Scratch-Dig): 10-5
- Type: Optical Square Parallels
- Length A [mm]: 50
- Thickness t [mm]: 2
- Material: BK7
- Surface flatness: 4λ
- Clear Aperture: 90% of actual aperture, or a circle or ellipse inscribed in the rectangle of 90% Dimensions
- Parallelism [´´]: <03´00´´
- Surface Quality (Scratch-Dig): 10-5
- Type: Optical Square Parallels
- Length A [mm]: 50
- Thickness t [mm]: 3
- Material: BK7
- Surface flatness: 4λ
- Clear Aperture: 90% of actual aperture, or a circle or ellipse inscribed in the rectangle of 90% Dimensions
- Parallelism [´´]: <03´00´´
- Surface Quality (Scratch-Dig): 10-5
- Type: Optical Square Parallels
- Length A [mm]: 50
- Thickness t [mm]: 5
- Material: BK7
- Surface flatness: 4λ
- Clear Aperture: 90% of actual aperture, or a circle or ellipse inscribed in the rectangle of 90% Dimensions
- Parallelism [´´]: <03´00´´
- Surface Quality (Scratch-Dig): 10-5
- Type: Optical Square Parallels
- Length A [mm]: 50
- Thickness t [mm]: 8
- Material: BK7
- Surface flatness: 4λ
- Clear Aperture: 90% of actual aperture, or a circle or ellipse inscribed in the rectangle of 90% Dimensions
- Parallelism [´´]: <03´00´´
- Surface Quality (Scratch-Dig): 10-5
Type: Optical Square Parallels
