Wedged Substrates, SiO2

-->

Reference number: OSE-WSSQ-30C05-20-0.5

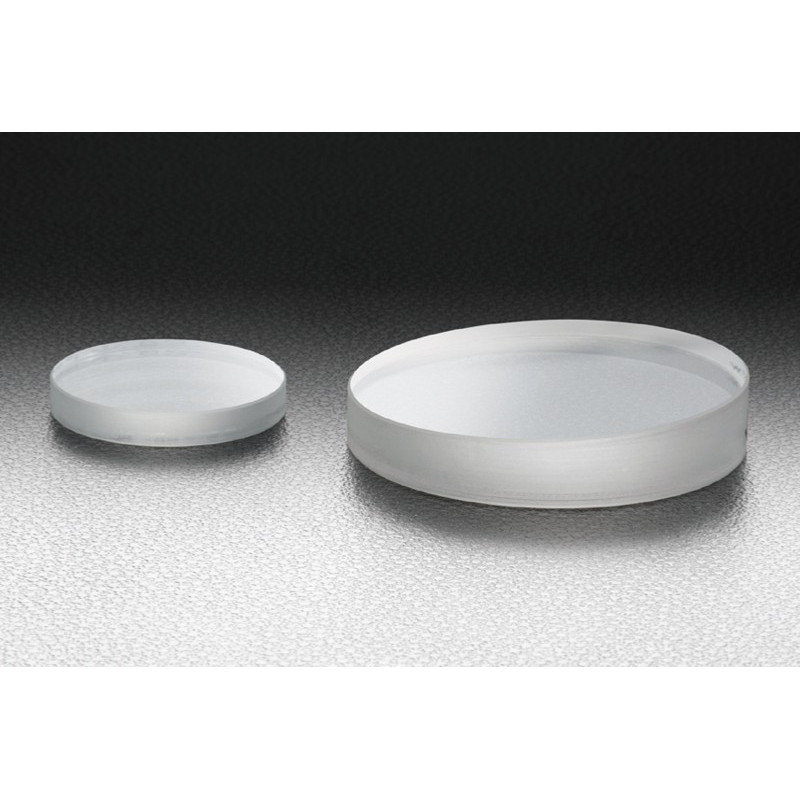

These wedged substrates can separate the reflected beam through the front and back surface of the substrates by the slight wedge angle. Material: SiO2.

Wedge Angle in °

Surface flatness

Diameter in mm

Wedge Angle in °

Surface flatness

Diameter in mm

Need more info?
Contact our expert.

Optics & Optomechanics Team
Phone: +49 8153 405-11

opticsoptomechanics@laser2000.com

Description

Material: Synthetic fused silica
Clear Aperture: 90% of real diameter
Wedge angle W: 0.5°±5´
Surface Quality (Scratch-Dig): 20-10

Type: Wedged Substrates
Diameter ØD [mm]: Ø30
Thickness t [mm]: 5
Material: Synthetic fused silica
Surface flatness: λ/20
Clear Aperture: 90% of real diameter
Wedge angle W: 0.5°±5´
Surface Quality (Scratch-Dig): 20-10

Downloads

OSE-WSB_WSSQ_WSSQK.pdf

Opt_Substratesundamp_Windows_.zip

Type: Wedged Substrates
Diameter ØD [mm]: Ø50
Thickness t [mm]: 8
Material: Synthetic fused silica
Surface flatness: λ/20
Clear Aperture: 90% of real diameter
Wedge angle W: 0.5°±5´
Surface Quality (Scratch-Dig): 20-10

Downloads

OSE-WSB_WSSQ_WSSQK.pdf

Opt_Substratesundamp_Windows_.zip

Type: Wedged Substrates
Diameter ØD [mm]: Ø10
Thickness t [mm]: 5
Material: Synthetic fused silica
Surface flatness: λ/20
Clear Aperture: 90% of real diameter
Wedge angle W: 1°±5´
Surface Quality (Scratch-Dig): 20-10

Downloads

OSE-WSB_WSSQ_WSSQK.pdf

Opt_Substratesundamp_Windows_.zip

Type: Wedged Substrates
Diameter ØD [mm]: Ø15
Thickness t [mm]: 5
Material: Synthetic fused silica
Surface flatness: λ/20
Clear Aperture: 90% of real diameter
Wedge angle W: 1°±5´
Surface Quality (Scratch-Dig): 20-10

Downloads

OSE-WSB_WSSQ_WSSQK.pdf

Opt_Substratesundamp_Windows_.zip

Type: Wedged Substrates
Diameter ØD [mm]: Ø25
Thickness t [mm]: 5
Material: Synthetic fused silica
Surface flatness: λ/20
Clear Aperture: 90% of real diameter
Wedge angle W: 1°±5´
Surface Quality (Scratch-Dig): 20-10

Downloads

OSE-WSB_WSSQ_WSSQK.pdf

Opt_Substratesundamp_Windows_.zip

Type: Wedged Substrates
Diameter ØD [mm]: Ø25
Thickness t [mm]: 5
Material: Synthetic fused silica
Surface flatness: λ/20
Clear Aperture: 90% of real diameter
Wedge angle W: 1°±5´
Surface Quality (Scratch-Dig): 20-10

Downloads

OSE-WSB_WSSQ_WSSQK.pdf

Opt_Substratesundamp_Windows_.zip

Type: Wedged Substrates
Diameter ØD [mm]: Ø30
Thickness t [mm]: 5
Material: Synthetic fused silica
Surface flatness: λ/20
Clear Aperture: 90% of real diameter
Wedge angle W: 1°±5´
Surface Quality (Scratch-Dig): 20-10

Downloads

OSE-WSB_WSSQ_WSSQK.pdf

Opt_Substratesundamp_Windows_.zip

Type: Wedged Substrates
Diameter ØD [mm]: Ø40
Thickness t [mm]: 6
Material: Synthetic fused silica
Surface flatness: λ/20
Clear Aperture: 90% of real diameter
Wedge angle W: 1°±5´
Surface Quality (Scratch-Dig): 20-10

Downloads

OSE-WSB_WSSQ_WSSQK.pdf

Opt_Substratesundamp_Windows_.zip

Type: Wedged Substrates
Diameter ØD [mm]: Ø50
Thickness t [mm]: 8
Material: Synthetic fused silica
Surface flatness: λ/20
Clear Aperture: 90% of real diameter
Wedge angle W: 1°±5´
Surface Quality (Scratch-Dig): 20-10

Downloads

OSE-WSB_WSSQ_WSSQK.pdf

Opt_Substratesundamp_Windows_.zip

Type: Wedged Substrates
Diameter ØD [mm]: Ø60
Thickness t [mm]: 10
Material: Synthetic fused silica
Surface flatness: λ/20
Clear Aperture: 90% of real diameter
Wedge angle W: 1°±5´
Surface Quality (Scratch-Dig): 20-10

Downloads

OSE-WSB_WSSQ_WSSQK.pdf

Opt_Substratesundamp_Windows_.zip

Type: Wedged Substrates
Diameter ØD [mm]: Ø80
Thickness t [mm]: 12
Material: Synthetic fused silica
Surface flatness: λ/20
Clear Aperture: 90% of real diameter
Wedge angle W: 1°±5´
Surface Quality (Scratch-Dig): 20-10

Downloads

OSE-WSB_WSSQ_WSSQK.pdf

Opt_Substratesundamp_Windows_.zip

Type: Wedged Substrates
Diameter ØD [mm]: Ø100
Thickness t [mm]: 15
Material: Synthetic fused silica
Surface flatness: λ/20
Clear Aperture: 90% of real diameter
Wedge angle W: 1°±5´
Surface Quality (Scratch-Dig): 20-10

Downloads

OSE-WSB_WSSQ_WSSQK.pdf

Opt_Substratesundamp_Windows_.zip

Type: Wedged Substrates
Diameter ØD [mm]: Ø30
Thickness t [mm]: 5
Material: Synthetic fused silica
Surface flatness: λ/20
Clear Aperture: 90% of real diameter
Wedge angle W: 2°±5´
Surface Quality (Scratch-Dig): 20-10

Downloads

OSE-WSB_WSSQ_WSSQK.pdf

Opt_Substratesundamp_Windows_.zip

Type: Wedged Substrates
Diameter ØD [mm]: Ø50
Thickness t [mm]: 8
Material: Synthetic fused silica
Surface flatness: λ/20
Clear Aperture: 90% of real diameter
Wedge angle W: 2°±5´
Surface Quality (Scratch-Dig): 20-10

Downloads

OSE-WSB_WSSQ_WSSQK.pdf

Opt_Substratesundamp_Windows_.zip

Type: Wedged Substrates
Diameter ØD [mm]: Ø30
Thickness t [mm]: 7
Material: Synthetic fused silica
Surface flatness: λ/20
Clear Aperture: 90% of real diameter
Wedge angle W: 3°±5´
Surface Quality (Scratch-Dig): 20-10

Downloads

OSE-WSB_WSSQ_WSSQK.pdf

Opt_Substratesundamp_Windows_.zip

Type: Wedged Substrates
Diameter ØD [mm]: Ø50
Thickness t [mm]: 10
Material: Synthetic fused silica
Surface flatness: λ/20
Clear Aperture: 90% of real diameter
Wedge angle W: 3°±5´
Surface Quality (Scratch-Dig): 20-10

Downloads

OSE-WSB_WSSQ_WSSQK.pdf

Opt_Substratesundamp_Windows_.zip

Type: Wedged Substrates
Diameter ØD [mm]: Ø30
Thickness t [mm]: 5
Material: Synthetic fused silica
Surface flatness: λ/10
Clear Aperture: 90% of real diameter
Wedge angle W: 0.5°±5´
Surface Quality (Scratch-Dig): 20-10

Downloads

OSE-WSB_WSSQ_WSSQK.pdf

Opt_Substratesundamp_Windows_.zip

Type: Wedged Substrates
Diameter ØD [mm]: Ø50
Thickness t [mm]: 8
Material: Synthetic fused silica
Surface flatness: λ/10
Clear Aperture: 90% of real diameter
Wedge angle W: 0.5°±5´
Surface Quality (Scratch-Dig): 20-10

Downloads

OSE-WSB_WSSQ_WSSQK.pdf

Opt_Substratesundamp_Windows_.zip

Type: Wedged Substrates
Diameter ØD [mm]: Ø10
Thickness t [mm]: 5
Material: Synthetic fused silica
Surface flatness: λ/10
Clear Aperture: 90% of real diameter
Wedge angle W: 1°±5´
Surface Quality (Scratch-Dig): 20-10

Downloads

OSE-WSB_WSSQ_WSSQK.pdf

Opt_Substratesundamp_Windows_.zip

Type: Wedged Substrates
Diameter ØD [mm]: Ø15
Thickness t [mm]: 5
Material: Synthetic fused silica
Surface flatness: λ/10
Clear Aperture: 90% of real diameter
Wedge angle W: 1°±5´
Surface Quality (Scratch-Dig): 20-10

Downloads

OSE-WSB_WSSQ_WSSQK.pdf

Opt_Substratesundamp_Windows_.zip

Type: Wedged Substrates
Diameter ØD [mm]: Ø20
Thickness t [mm]: 5
Material: Synthetic fused silica
Surface flatness: λ/10
Clear Aperture: 90% of real diameter
Wedge angle W: 1°±5´
Surface Quality (Scratch-Dig): 20-10

Downloads

OSE-WSB_WSSQ_WSSQK.pdf

Opt_Substratesundamp_Windows_.zip

Type: Wedged Substrates
Diameter ØD [mm]: Ø25
Thickness t [mm]: 5
Material: Synthetic fused silica
Surface flatness: λ/10
Clear Aperture: 90% of real diameter
Wedge angle W: 1°±5´
Surface Quality (Scratch-Dig): 20-10

Downloads

OSE-WSB_WSSQ_WSSQK.pdf

Opt_Substratesundamp_Windows_.zip

Type: Wedged Substrates
Diameter ØD [mm]: Ø30
Thickness t [mm]: 5
Material: Synthetic fused silica
Surface flatness: λ/10
Clear Aperture: 90% of real diameter
Wedge angle W: 1°±5´
Surface Quality (Scratch-Dig): 20-10

Downloads

OSE-WSB_WSSQ_WSSQK.pdf

Opt_Substratesundamp_Windows_.zip

Type: Wedged Substrates
Diameter ØD [mm]: Ø40
Thickness t [mm]: 6
Material: Synthetic fused silica
Surface flatness: λ/10
Clear Aperture: 90% of real diameter
Wedge angle W: 1°±5´
Surface Quality (Scratch-Dig): 20-10

Downloads

OSE-WSB_WSSQ_WSSQK.pdf

Opt_Substratesundamp_Windows_.zip

Type: Wedged Substrates
Diameter ØD [mm]: Ø50
Thickness t [mm]: 8
Material: Synthetic fused silica
Surface flatness: λ/10
Clear Aperture: 90% of real diameter
Wedge angle W: 1°±5´
Surface Quality (Scratch-Dig): 20-10

Downloads

OSE-WSB_WSSQ_WSSQK.pdf

Opt_Substratesundamp_Windows_.zip

Type: Wedged Substrates
Diameter ØD [mm]: Ø60
Thickness t [mm]: 10
Material: Synthetic fused silica
Surface flatness: λ/10
Clear Aperture: 90% of real diameter
Wedge angle W: 1°±5´
Surface Quality (Scratch-Dig): 20-10

Downloads

OSE-WSB_WSSQ_WSSQK.pdf

Opt_Substratesundamp_Windows_.zip

Type: Wedged Substrates
Diameter ØD [mm]: Ø80
Thickness t [mm]: 12
Material: Synthetic fused silica
Surface flatness: λ/10
Clear Aperture: 90% of real diameter
Wedge angle W: 1°±5´
Surface Quality (Scratch-Dig): 20-10

Downloads

OSE-WSB_WSSQ_WSSQK.pdf

Opt_Substratesundamp_Windows_.zip

Type: Wedged Substrates
Diameter ØD [mm]: Ø100
Thickness t [mm]: 15
Material: Synthetic fused silica
Surface flatness: λ/10
Clear Aperture: 90% of real diameter
Wedge angle W: 1°±5´
Surface Quality (Scratch-Dig): 20-10

Downloads

OSE-WSB_WSSQ_WSSQK.pdf

Opt_Substratesundamp_Windows_.zip

Type: Wedged Substrates
Diameter ØD [mm]: Ø30
Thickness t [mm]: 5
Material: Synthetic fused silica
Surface flatness: λ/10
Clear Aperture: 90% of real diameter
Wedge angle W: 2°±5´
Surface Quality (Scratch-Dig): 20-10

Downloads

OSE-WSB_WSSQ_WSSQK.pdf

Opt_Substratesundamp_Windows_.zip

Type: Wedged Substrates
Diameter ØD [mm]: Ø50
Thickness t [mm]: 8
Material: Synthetic fused silica
Surface flatness: λ/10
Clear Aperture: 90% of real diameter
Wedge angle W: 2°±5´
Surface Quality (Scratch-Dig): 20-10

Downloads

OSE-WSB_WSSQ_WSSQK.pdf

Opt_Substratesundamp_Windows_.zip

Type: Wedged Substrates
Diameter ØD [mm]: Ø30
Thickness t [mm]: 7
Material: Synthetic fused silica
Surface flatness: λ/10
Clear Aperture: 90% of real diameter
Wedge angle W: 3°±5´
Surface Quality (Scratch-Dig): 20-10

Downloads

OSE-WSB_WSSQ_WSSQK.pdf

Opt_Substratesundamp_Windows_.zip

Type: Wedged Substrates
Diameter ØD [mm]: Ø50
Thickness t [mm]: 10
Material: Synthetic fused silica
Surface flatness: λ/10
Clear Aperture: 90% of real diameter
Wedge angle W: 3°±5´
Surface Quality (Scratch-Dig): 20-10

Downloads

OSE-WSB_WSSQ_WSSQK.pdf

Opt_Substratesundamp_Windows_.zip
