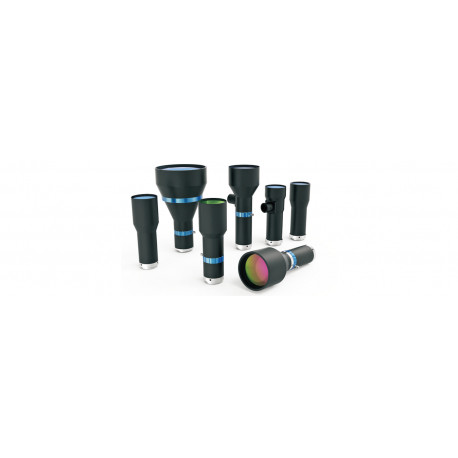

OPT-AS Bi-Telecentric Lenses

OPT-AS Bi-Telecentric Lenses
search
  • OPT-AS Bi-Telecentric Lenses
-->

Reference number: OPT-AS

alt

Need more info?
Contact our expert.

Machine Vision Team
Phone: +49 8153 405-11

Description

Product Features:

  • AS series is designed for accurate geometric measurements
  • Image captures with maximum aperture
  • Extraordinary aberration correction with an resolving power close to the diffraction limit, with adjustable light bar for the balance of depth and resolution to provide convenient use
  • Option to integrate coaxial lighting, bilateral telecentric design
  • Multiple variants available, highly and easily customizable




Part number

WD [mm]

Chip Size [Ø mm]

Distortion

DOF [mm]

OPT-AS05-65A

65 ± 1

11

0.1

1.65

OPT-AS05-65C

65 ± 1

11

0.1

1.65

OPT-AS04-96A

96 ± 2

11

0.1

5.52

OPT-AS04-96A-IR

96 ± 2

11

0.1

2.58

OPT-AS03-110A

110 ± 2

11

0.1

3.44

OPT-AS03-110C

110 ± 2

11

0.1

3.44

OPT-AS0166-166A

166 ± 3

11

0.1

9.88
