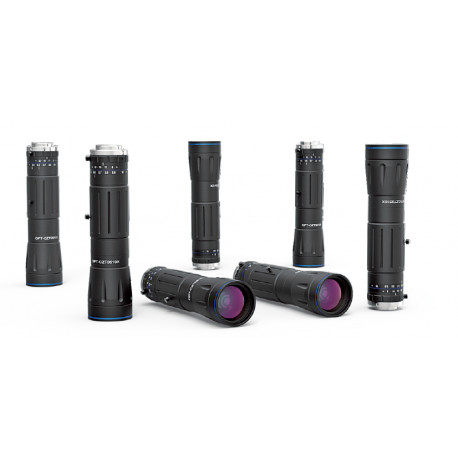

  • OPT Zoom Telecentric Lens
  • OPT Zoom Telecentric Lens
  • OPT Zoom Telecentric Lens
-->

Reference number: OPT-CZT

alt

Need more info?
Contact our expert.

Machine Vision Team
Phone: +49 8153 405-11

Description

Product Features:

  • 0.5 – 1.0 x adjustable magnification
  • Applicable to large target areas, suitable for 1/1.2‘‘ sensor and below
  • Object telecentric design, and the telecentricity below 0.05 in all magnification
  • Low distortion, the whole image distortion below 0.1 %




Part number

Aperture range

WD [mm]

Distortion

@ 546 nm

Magnification

Telecentricity

OPT-CZT0510X

F8 - 22

108 mm ± 3 %

< 0.05 %

0.5 x

< 0.05°

0.6 x

< 0.04°

0.7 x

< 0.05°

0.8 x

< 0.03°

0.9 x

< 0.02°

1.0 x

< 0.05°
