Reference number: NVT-Sign-LASER-RG-L

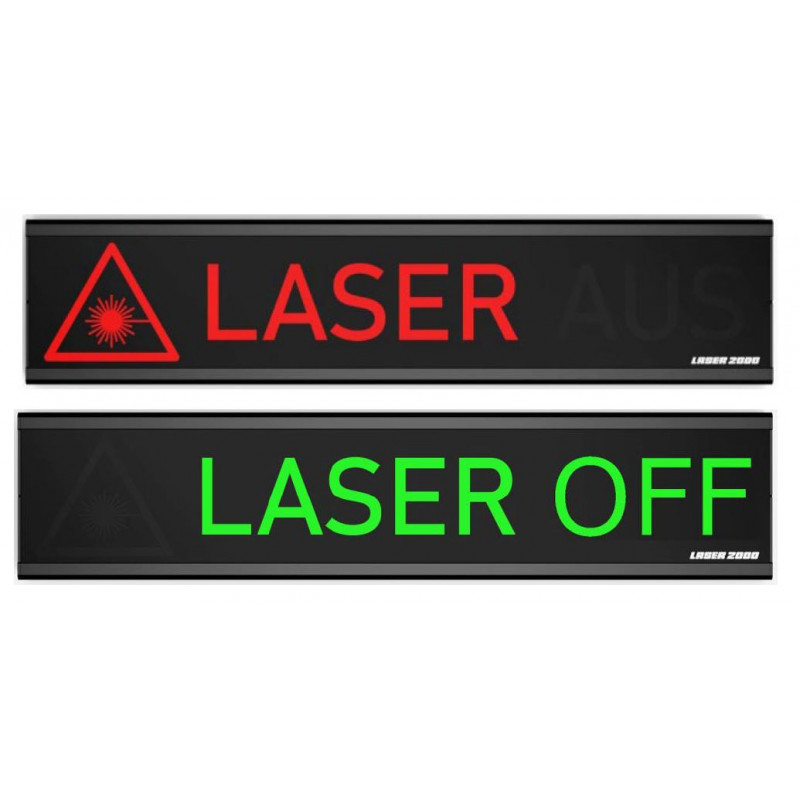

Large LED laser warning sign, switchable between red (laser symbol with text LASER) and green (text LASER OFF or AUS).
Need more info?
Contact our expert.
Laser Safety Team
Phone: +49 8153 405-11
Description
Description:
Large LED laser warning sign, switchable between red (laser symbol with the text LASER) and green (text LASER OFF or AUS). Three separate LED controllers, each with separate connections for ground and +24VDC, ensure high reliability.
Application:
For the legally compliant marking of laser areas.
Specifications & Features:
Red:
• Laser symbol + LASER
• Two separate LED controllers for laser symbol and text LASER
Green:
• LASER OFF or AUS
• One separate LED controller for text LASER OFF or AUS
Housing:
• Aluminum, black anodized
Operating Voltage and Current:
• 24 VDC, 300 mA (red) / 340 mA (green)
Dimensions and Weight:
• 540 x 130 x 30 mm (W x H x D), 1.6 kg
Temperature Range:
• +10 to +40 °C
Environment:
• IP20 (Indoor use only)
Part Numbers:
• NVT-Sign-LASER-RG-L-DE: Text in German
• NVT-Sign-LASER-RG-L-EN: Text in English
Large LED laser warning sign, switchable between red (laser symbol with text LASER) and green (text LASER OFF or AUS).
