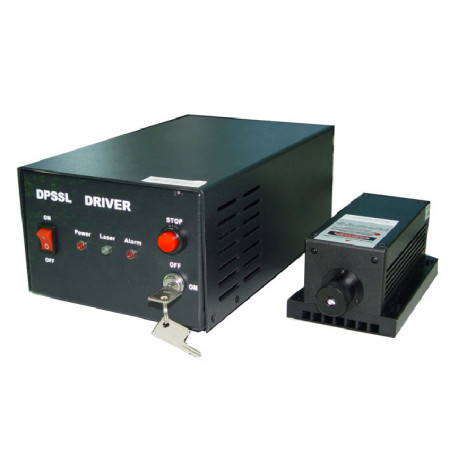

  • cni-dpss-laser.jpg
  • mll-h_532_671_bild_03_cni-dpss-laser_1.jpg
  • dpssl-driver_06_cni-dpss-laser_2.jpg
  • laserhead_02_cni-dpss-laser_3.jpg
-->

Reference number: CNI-DPSS-CW-Laser

The cw solid-state lasers of the CNI series are characterized by the availability of almost all commercially available wavelengths

alt

Need more info?
Contact our expert.

Laser & Light Sources Team
Phone: +49 8153 405-11

Description

The CNI series cw DPSS lasers are available with nearly all commercial available wavelengths. In many cases the optical output power reaches the technical limit having a compact housing and a high reliability at the same time. As options TTL or analog modulations are available as well as fiber couplings.

Applications: Fluorescence Excitation, Illumination, Laser-Show

Wavelengths and powers:


Wavelength [nm]

Power cw (different models)

261

1 - 3 mW

303

1 - 20 mW

320

1 - 25 mW

355

1 - 15 mW

360

1 - 200 mW

457

1 mW - 10 W

473

1 mW - 1.5 W

480

10 - 150 mW

491

1 - 2 mW

501

1 - 2 mW

515

10 - 500 mW

522

1 - 100 mW

523.5

1 - 800 mW

527

1 mW - 1 W

532

1 mW - 20 W

543

1 mW - 1.5 W

556

1 mW - 2.5 W

561

1 mW - 2 W

589

10 mW - 4.5 W

593

1 - 800 mW

604

1 - 60 mW

607

1 - 300 mW

639

1 - 700 mW

656.5

1 - 1200 mW

660

1 mW - 2 W

671

1 mW - 5 W

721

1 - 500 mW

914

100 - 1000 mW

946

1 - 1000 mW

1030

1 - 150 mW

1040

1 - 150 mW

1047

1 mW - 1 W

1053

1 mW - 1.5 W

1064

1 mW - 20 W

1085

1 - 500 mW

1112

1 - 500 mW

1122

1 - 1000 mW

1177

1 - 150 mW

1313

1 mW - 1 W

1319

1 - 1500 mW

1342

1 mW - 6 W

1444

1 - 200 mW

1645

1 - 1000 mW

1910

1 mW - 11 W

1940

1 mW - 11 W

1985

1 mW - 11 W

1990

1 mW - 11 W

2096

1 W - 3 W

More wavelengths are available as diode lasers.
