JDSU Helium-Neon gas laser

search

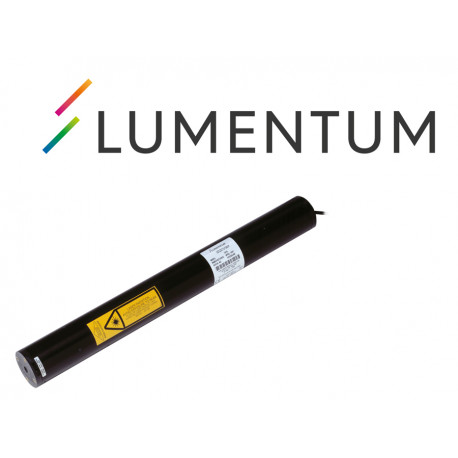

  • jdp-hene.jpg
-->

Reference number: PSL-HeNe

JDSU helium-neon lasers with the wavelength 632.8nm are available in the power range from 0.5 mW to 22.5 mW.

alt

Need more info?
Contact our expert.

Laser & Light Sources Team
Phone: +49 8153 405-11

Description

JDSU manufactures helium-neon lasers with the wavelength 632.8nm. All feature the patented close-cathode design that rapidly and uniformly distributes discharge heat throughout the laser, resulting in excellent thermal, beam-pointing, and power stability. The patented field concentrator design ignites the discharge within milliseconds of applying the start voltage. Hard-sealed internal mirrors, small physical size, and low noise result in greater reliability, longer life, and enhanced performance. Power ranges from 0.5 mW to 22.5 mW.



All JDSU helium-neon lasers are manufactured in a dedicated facility using state-of-the- art process control technology. This enables higher process yields, and results in dependable lead times and excellent on-time delivery performance.


Typical applications:

  • Flow cytometry
  • Metrology - Alignment
  • Laser-induced fluorescence
  • Semiconductor inspection



HeNe Laser at 632.8 nm:

Cylindrical housing, separate power supply:

Model Power Polarization Beam pointing stability* Lab power supply**
1108 0.5 mW - - 1205-2
1108P 0.5 mW 500:1 - 1205-2
1107 0.8 mW - - 1205-2
1107P 0.8 mW 500:1 - 1205-2
1101 1,5 mW - - 1201-2
1101P 1,5 mW 500:1 - 1201-2
1103 2.0 mW - - 1201-2
1103P 2.0 mW 500:1 - 1201-2
1122 2.0 mW - <0.02 mrad 1206-2
1122P 2.0 mW 500:1 <0.02 mrad 1206-2
1125 5.0 mW - <0.02 mrad 1202-2
1125P 5.0 mW 500:1 <0.02 mrad 1202-2
1137 7.0 mW - <0.02 mrad 1202-2
1137P 7.0 mW 500:1 <0.02 mrad 1202-2
1135 10.0 mW - <0.02 mrad 1216-2
1135P 10.0 mW 500:1 <0.02 mrad 1216-2
1144 15.0 mW - <0.03 mrad 1218-2
1144P 15.0 mW 500:1 <0.03 mrad 1218-2
1145 22.5 mW - <0.03 mrad 1218-2
1145P 21.0 mW 500:1 <0.03 mrad 1218-2

*after 15 minutes warm-up
**OEM power supplies on request


HeNe laser with integrated high voltage power supply:

Model Power Polarization Beam pointing stability Line adapter*
1508-2 0.5 mW - - 230 VAC
1508P-2 0.5 mW 500:1 - 230 VAC
1507-2 0.8 mW - - 230 VAC
1507P-2 0.8 mW 500:1 - 230 VAC

*included


HeNe laser tubes without housing:

Model Power Polarization Voltage Current Starting voltage
1008 0.5 mW - 1000 V 4.0 mA 7 kV
1008P 0.5 mW 500:1 1000 V 4.0 mA 7 kV
1007 0.8 mW - 1000 V 4.0 mA 7 kV
1007P 0.8 mW 500:1 1000 V 4.0 mA 7 kV
098-0 1.0 mW - 1000 V 3.7 mA 10 kV
1001 1.5 mW - 1400 V 4.9 mA 10 kV
1001P 1.5 mW 500:1 1400 V 4.9 mA 10 kV
098-2 2.0 mW - 1200 V 3.7 mA 10 kV
098-3 2.0 mW - 1200 V 4.5 mA 10 kV
1003 2.0 mW - 1400 V 4.9 mA 10 kV
1003P 2.0 mW 500:1 1400 V 4.9 mA 10 kV
1022 2.0 mW - 1300 V 6.5 mA 10 kV
1018 2.5 mW - 1400 V 4.5 mA 7 kV

Please contact Laser 2000 for detailed data sheets and pricing.
