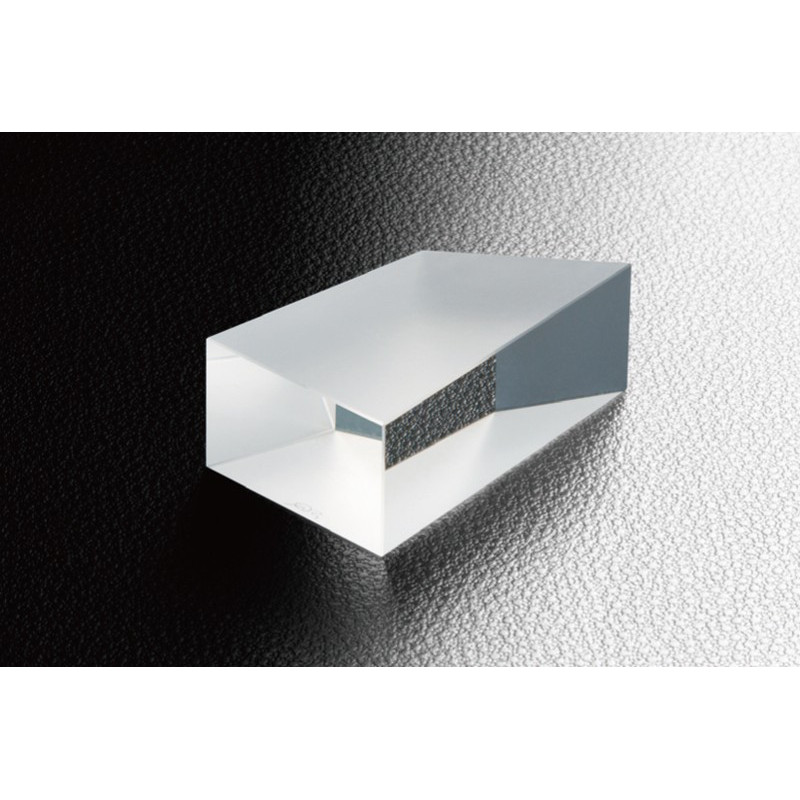

Pellin Broca Prism

search
-->

Reference number: OSE-PBPQ-30L20-10

Pellin-Broca prism is a scattering Brewster prism and is designed to emit in the direction perpendicular to the incident beam.

alt

Need more info?
Contact our expert.

Optics & Optomechanics Team
Phone: +49 8153 405-11

Description

  • Material: Synthetic fused silica
  • Surface flatness of substrate: λ/10
  • Surface Quality (Scratch-Dig): 2010
  • Clear aperture: Circle or ellipse inscribed in a rectangular of 90% of the dimension size
  • A [mm]: 30
  • B [mm]: 50
  • C [mm]: 20
  • θ1 [°]: 56.13
  • θ2 [°]: 79.5
  • Angle accuracy: <3´
