Laser shutter up to 20W

LS-30
search
  • LS-30
  • LS-30-OEM
  • LS-30 dimensions
-->

Reference number: LMT-LS-30

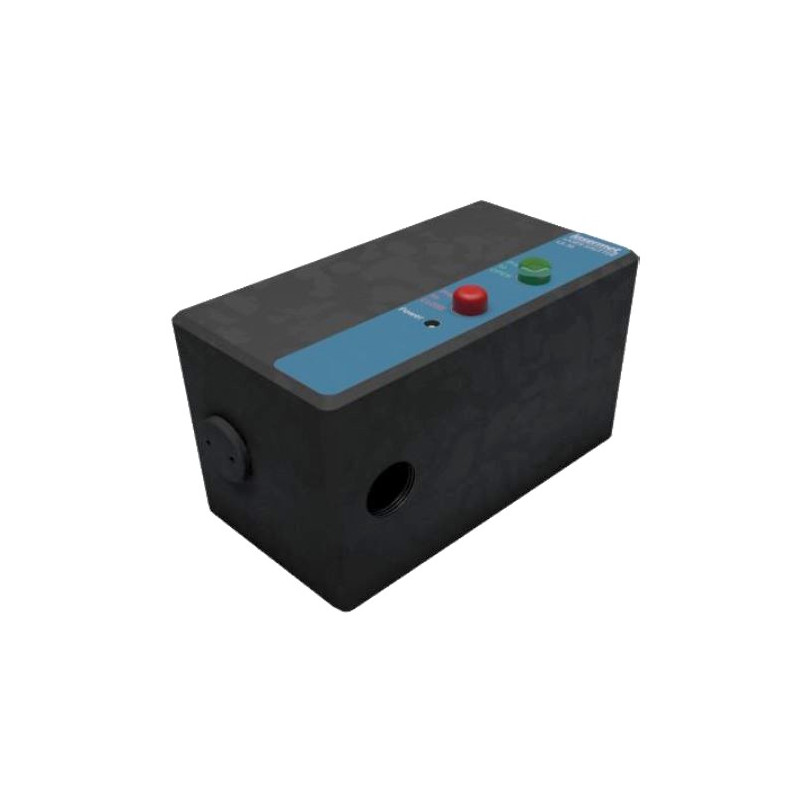

Air-cooled laser safety shutter for up to 20 W of optical power. Can be mounted horizontal or vertical.

alt

Need more info?
Contact our expert.

Laser Safety Team
Phone: +49 8153 405-11

Description

Safety shutter for lasers up to 20 W (>2 mm beam diamter). Higher laser powers with external beam dump possible.

  • Standard blade: Steel (mirror or ceramic on request)
  • Aperture diameter: 16 mm
  • Thread on aperture: M17x1
  • Dimensions (mm):  112 x 60 x 68
  • Weight: 600 g (270 g OEM version)
  • Operation voltage: 24 VDC
  • Operation current, typ.:  13.5 mA (closed), 52.5 mA (open), 310 mA (peak, max. 1.1 s)
  • Opening time: 45 ms typ.
  • Closing time: 70 ms typ.
  • Expected liefe time: >1.000.000 operations

Permissible exposure (according to EN 60825-4):

Irradiated area                      PEL (T1) 30 000 s

4 mm²                                       5 MW/m²

The shutter can be operated in horizontal or vertical position.
