The StellarNet BLUE-Wave miniature spectrometer is a fiber optically coupled instrument with a wide selection of models for measurements in 200 - 1150 nm wavelength ranges.
Need more info?
Contact our expert.
Optical Test & Measurement Team
Phone: +49 8153 405-11
Description

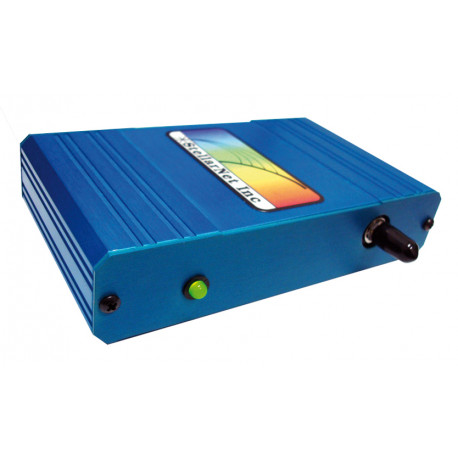

The StellarNet BLUE-Wave miniature spectrometer is a fiber optically coupled instrument with a wide selection of models for measurements in 200 - 1150 nm wavelength ranges. Each unit contains a USB interface with a snap shot memory to provide instantaneous spectral image from the highly sensitive CCD with 2048. Various models provide a choice of grating range and slit resolutions. New and improved electronics with a high speed 16-bit digitizer allows for fast data acquisition and a signal to noise of 1000:1! Up to 8 units can be daisy chained together and are able to run simultaneously. Additionally the new BLUE-Wave miniature spectrometer can be powered directly from your PC USB-2 port. A single strand fiber optic cable or probe assembly delivers input via standard SMA 905 fiber optic connector with a choice of cable lengths. The spectrograph optics are exceptionally robust in a vibration tolerant modular design, with no moving parts.
The detachable spectrograph assembly and control electronics are protected inside a rugged metal enclosure, suitable for portable, process, and lab applications. Several units may be daisy-chained using a standard USB hub allowing simple configurations for dual and multi-beam applications in chemistry, spectroradiometry, and PORTA-LIBS.
Additional BLUE-Wave measurement applications include emission wavelength monitoring /characterization of tunable lasers or LED’s and other sources such as elemental emissions from plasma & Laser Induced Breakdown Spectroscopy. Also Bragg grating technology enables optical sensing of many parameters including temperature and pressure. Thin film thickness measurements can be made using sample specular reflectance. The small size and weight makes the BLUE-Wave compact miniature spectrometer just perfect for portable and OEM applications.
A detector collection lens (DLENS) can be added to the detector window in any miniature spectrometer BLUE-Wave model spectrometer. When used with larger diameter fibers (600 µm and 1000 µm) the DLENS can increase the light collecting efficiency by up to 3 times! This detector upgrade is great for low light application such as fluorescence, reflectance, or any application where increased light collection and data acquisition speed are important.
|
Dynamic range: |
2000:1 with 6 decades |
|
Dimensions: |
1 x 3 x 5 inch = 25 x 75 x 125 mm |
|
Optical resolution: |
see model table - to 0.2 nm |
|
Weight: |
14 ounces |
|
Detector type: |
CCD, 2k/3k pixels |
|
Power consumption: |
< 100 mA via USB port |
|
Detector range: |
200 - 1100 nm |
|
Interface: |
USB or USB Hub |
|
Pixel size: |
14 x 200 µm or 7 x 200 µm |
|
Detector Integration: |
1 ms to 65 s |
|
Diffraction Gratings: |
Holographic & Ruled |
|
Slit size options: |
14, 25, 50, 100, 200 µm |
|
Grating g/mm: |
300, 600,1200,1800, 2400 |
|
Stray light: |
< 1 % at 435 nm < 0.05 % at 600 nm |
|
Spectrograph: |
f/4, SymX-Czerny–Turner |
|
Fiber optic input: |
SMA905 0.22 na single fiber |
|
Order sorting filters: |
Integrated & High Pass |
|
Operating systems: |
Windows XP/Vista/7 |
|
Signal to noise: |
1000:1 |
|
Software included: |
SpectraWiz program & apps |
|
Digitizer: |
16-bit |
|
Also free programs for: |
LabView, Excel+VBA, Delphi |
| Model | Wavelength Range [nm] | Grating |
Slit 200µm Resolution [nm] |
Slit 100µm Resolution[nm] |
Slit 50µm Resolution[nm] |
Slit 25 µm Resolution[nm] |
Slit 14µm Resolutio[nm] |
| UV |
200-600 |
1200 | 3.0 | 1.6 | 0.8 | 0.50 | 0.40 |
| UV2 | 200-400 | 2400 | 1.5 | 0.8 |
0.4 |
0.25 | 0.20 |
| UV3 |
220-350 |
3600 | 1.0 | 0.5 | 0.25 | 0.16 | 0.13 |
| UVIS |
300-1100 |
600 | 6.0 | 3.2 | 1.6 | 1.00 | 0.80 |
| VIS |
350-1150 |
600 | 6.0 | 3.2 | 1.6 | 1.00 | 0.80 |
| VIS2 |
380-780 |
1200 | 3.0 | 1.6 | 0.8 | 0.50 | 0.40 |
| NIR |
500-1150 |
600 | 6.0 | 3.2 | 1.6 | 1.00 | 0.80 |
| NIR2 |
600-1000 |
1200 | 3.0 | 1.6 | 0.8 | 0.50 | 0.40 |
| NIR2b |
758-1150 |
1200 | 3.0 | 1.6 | 0.8 | 0.50 | 0.40 |
| NIR3 |
550-840 |
1800 | 2.2 | 1.2 | 0.6 | 0.35 | 0.28 |
| NIR3b |
680-935 |
1800 | 2.2 | 1.2 | 0.6 | 0.35 | 0.28 |
| NIR4 |
500-700 |
2400 | 1.5 | 0.8 | 0.4 | 0.25 | 0.20 |
| NIR4b |
600-800 |
2400 | 1.5 | 0.8 | 0.4 | 0.25 | 0.20 |
| UVN |
250-1100 |
600 | 6.0 | 3.2 | 1.6 | 1.00 | 0.80 |
| UVNb |
200-1050 |
600 | 6.0 | 3.2 | 1.6 | 1.00 | 0.80 |
Free SpectraWiz Software
The powerful SpectraWiz® spectrometer software is provided free of charge with every spectrometer instrument. This includes drivers and customizable software for Windows. The SpectraWiz software is considered the "Swiss Army Knife of Spectroscopy" and may be used to accurately measure wavelength emissions, reflectance, transmission, absorption, concentrations, and absolute intensities. In addition to real-time spectroscopy, SpectraWiz® has built-in applications for SpectroRadiometry, SpectroColorimetry, ChemWiz chemistry lab concentration analyzer, and UV level monitors.
