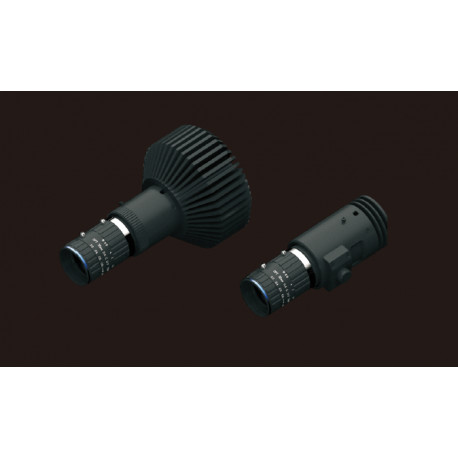

OPT-SL Direct Structured Lights

OPT-SL Strukturierte Beleuchtungen
search
  • OPT-SL Strukturierte Beleuchtungen
  • OPT-SL Strukturierte Beleuchtungen
  • OPT-SL Strukturierte Beleuchtungen
  • OPT-SL Strukturierte Beleuchtungen
-->

Reference number: OPT-SL

alt

Need more info?
Contact our expert.

Machine Vision Team
Phone: +49 8153 405-11

Description

Product Features:

  • The lens position is adjustable, no need adapter rings
  • Suitable for C Mount lens with sensor size of 2/3’’
  • Multiple grid chips can be customized according to the actual application
  • The spot boundary is clear and uniform, can realize precise illumination
  • The lights is perpendicular to the measuring surface and oblique illumination refer to OPT-SLS



Selection Guide


Combination of Grid Chip and Lens

  • The coating side of grid chip is facing toward the lens direction when assembling.
  • When replacing the grip, rotate the clamping ring to replace the grid chip.



Sectional Structure Diagram


Series

Part number

Color

Output [W]

Compatible Controller

Direct Structured Lights

OPT-SL03

R / G / B / W

3,5 / 2,6 / 2,6 / 2,6

OPT-DPA2005E

Direct Structured Lights

OPT-SL10

R / G / B / W

9,1 / 7,4 / 7,4 / 7,4

OPT-DPA2012E



Grid Chip



Lens and Spot Size

Lens part number

Working Distance (WD)

50 mm

100 mm

150 mm

200 mm

300 mm

400 mm

500 mm

Spot diameter [mm]

OPT-C0825-5M

90

160

220

280

420

460



OPT-C1216-5M

70

110

160

200

290

380

490

OPT-C1614-5M

 -

90

120

150

220

300

360

OPT-C2514-5M

-

-

70

100

140

170

210

OPT-C3514-5M

-

-

-

-

100

130

160
